Linking equipment to a terminal

Linked Equipment Terminal
LYNQ is shipped with a terminal called 'Equipment'.  Do not delete this terminal, it is used to display the functions available when using Linked Equipment.  All other terminals are provided as templates and can be deleted if required once LYNQ is configured.

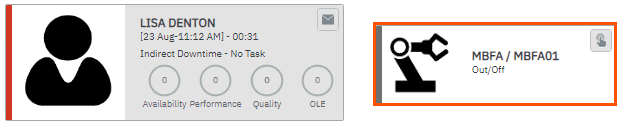

When equipment is linked to the terminal, the equipment will appear in the workbench header.  This allows the operator to see the job list by work unit. When the work unit seat is activated, the operator will be able to perform additional equipment type activities.  Such as turn the equipment on and off to start tracking equipment time and to control whether the equipment should divert to other statuses such as equipment failure, tooling failure etc.  This supports the calculation of overall equipment effectiveness (OEE).

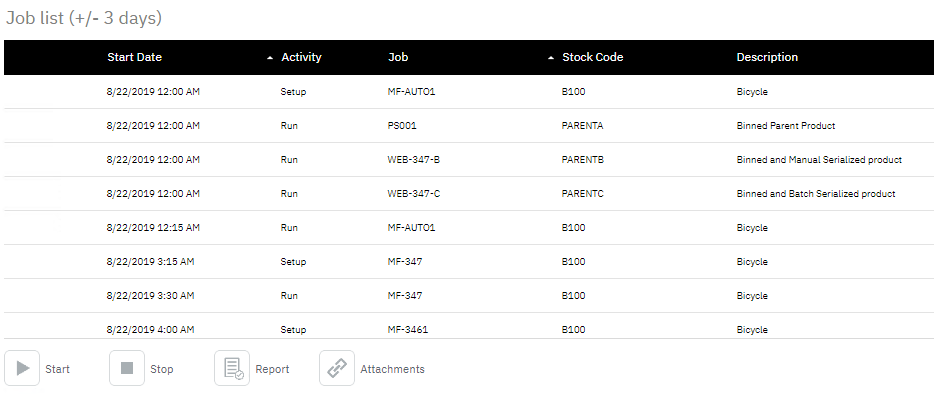

Scheduled Jobs that are dispatched from Visual ASP

On Screen Elements which are configured against the Equipment Terminal.  These can be customised from Advanced Settings.


To link equipment to a terminal:

1. Select Terminal Maintenance
2. Using [...] select the linked equipment
